ABC Pipes

Our LO-HI pipes are fixed and leak-proof. They enable water to be transported over long distances at high pressure:

  • Connectors used for the pumping station, aspiration and discharge accessories.

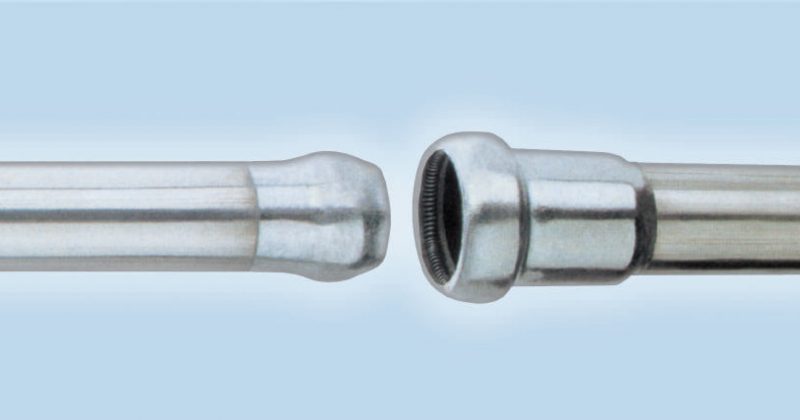

  • Aluminium male and female connectors, welded at each end of the aluminium pipe.
  • 30° angle possible in all areas between two pipes.
  • Mechanical locking with two hooks.
  • The pipes are sealed by an o-ring which is compressed in its housing during locking.
  • The water flow direction in the coupling is male/female.

A complete range of hot galvanised steel accessories is available for this type of connector (inline T, 45 and 90° elbow joints, CIA T, CIA cross, cap, valve, etc.).
